Bullnose 24SV High Speed Barge

MetalCraft Marine

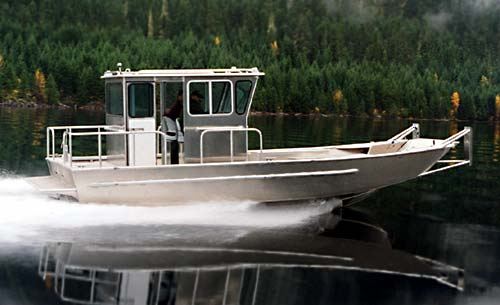

Bullnose 24SV for US National Park Service, North Cascades, WA.

Bullnose 24 SV
North Cascades National Park
Max speed40 knots
L.O.A.24'
B.O.A.8'4"
Draft12"
Weight2,300 lb (light base boat)
Propulsion200 hp

The Bullnose Line (Landing Craft) is a lightweight, high-speed, trailable commercial boat. Uniquely designed with a self draining floor and functional bow gate the Landing Craft boasts a V Haul for easy maneuverability without jeopardizing cargo carrying capabilities. Starting at a length of 22' this low maintenance, stable and strong commercial planning craft will provide the most economical means of cargo transportation.

  • Horsepower is what we would recommend for outboards and are not maximums.
  • Horsepower would be based on the vessel mission.
  • In all cases we can install outboard, stern drive and jet, gas or diesel.
  • Drafts are hull, not engines, in lightship departure condition.
  • Weights can vary depending on the wheelhouse, gear, power, etc.

Standard Features

  • Aluminum: 5052 (fresh water) marine-grade aluminum
  • Standard 30" sides
  • Centre Console - 32" 2w/plexiglass windshield
  • Bow locker
  • 2 sets paddle holders
  • Stern seat locker - full width
  • Built-in 30-gallon fuel tank
  • Inspection Plates
  • Single Outboard bracket
  • Navigation Lights & Horn
  • Split pipe on bow with guards
  • Removable stern mast
  • Centre keel wear bar
  • Stern lifting lugs
  • Cable steering
  • Electrical panel - 6 breakers
  • 3/16" 5050 marine grade aluninum plate
  • Six 6" cleats
  • Self-bailing deck tread plate floor
  • Sea scuppers
  • Heavy extrusion framing - vertical/horiz/long

Options

  • 5083 Alloy (salt water applications)
  • Ice Package (1/4" bottom plate)
  • Fully enclosed wheelhouse 5X6
  • Partially enclosed wheelhouse 4 X 6
  • Hydraulic Steering - 150/300 Hp side mount
  • Helm Station T-Top roof
  • Full walk thru windshield on dual consoles
  • Width of boat aluminum hardtop with open sides and rear. Solid front centre console with 3 safety glass windows - 8 per. Coverage
  • ViewFlex and Sunbrella curtains to close in
  • Option in place of view flex
  • Console / windshelds
  • Front console seat with cushion
  • 1" aluminum pipe railing (per foot)
  • Stern seat cushion
  • Deluxe adjustable helm seat
  • DC Receptacle
  • Defrost fan
  • Heater - 30,000 btu with ducting
  • Sliding side windows - Vetus (ea.) 24" x 32"
  • Cabin lighting
  • 12" stainless grab handles (ea)
  • Cabin eyebrow handrails (alum)
  • Bomar Hatch mounted in cabin top (16" x 16")
  • Windshield Wipers installed (heavy duty) each
  • Storage seat box
