High Speed Interceptor 10M Patrol Boat Manufactured by MetalCraft Marine

High Speed Interceptor 10M Patrol Boat

Download: Interceptor Military Patrol Boats (PDF) 10M Interceptor Drawing (PDF)

MetalCraft Marine designs and manufactures high speed aluminum fireboats and patrol boats.

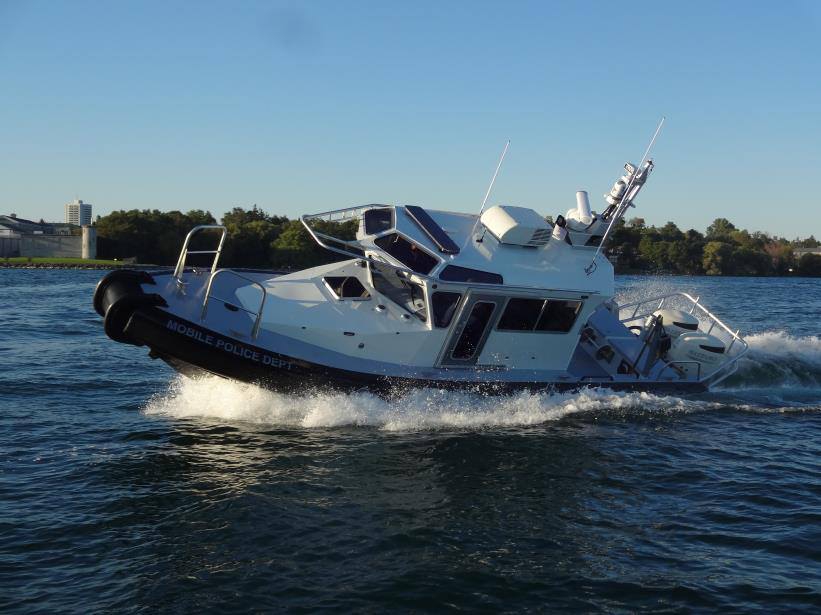

Mobile AL 34’ Interceptor in hard-over maneuver during trials, note overhead side spotter windows designed to be at driver’s eye level, and full window side doors, for exceptional visibility. More photos on Flickr.

The Interceptor 10M is the first stealth-designed high-speed small craft for Navies, Coast Guards and Police agencies. It is maneuverable, versatile, rugged and reliable, and suited to a wide range of applications like search and rescue, special operations, and patrol.

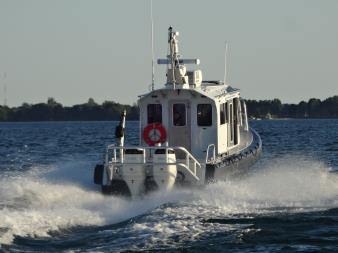

Mobile Police 34’ Interceptor sea trials.

Interceptor 10M Standard Configuration
Max speed	45-55 Knots
Cruise Speed	38 Knots
L.O.A.	34'
B.O.A.	9' 10"
Draft	20"
Air Draft Mast Up	13' 6"
Air Draft Mast Down	9' 5" with AC unit
Weight	11,500Lbs
Capacity	12 people
Fuel Cap.	250 US Gallons
Engines	2 X 250 hp to 3 X 300 hp
Cabin height	6'10"
Cuddy height	5'11"
Cabin Options	T-Top or partial/full wheelhouse
Ballistic Protection	Portable Level III
Gun Positions	1-6
More photos on Flickr

The Offshore Cabin design is designed for operation in Sea states 4-5. Wave heights of 13-18 feet. Structure for these severe seas is calculated as per ISO 12215, Category B for these wave impacts at speed. The vessel’s windows and frames and cabin support pillars are an instrumental part of these calculations. This means that claims of pillarless glass are baseless.

Other design features to provide safety for crew in these conditions include adjustable suspension seats with seatbelts, a sloped decked in foredeck for green water shedding, an elongated angular cuddy design, designed as a wave break to break up green water on deck.

There is a long water tight fore deck hatch that opens on a gas shock to 90 degrees and a small ladder for easy access to the foredeck from inside the cabin. There is a handrail on the inside face of the hatch. The foredeck is expansive and the vessel has wide side decks for moving aft. All foredeck rails are customized to your needs. There are various non-skid options that we tailor to your specific needs for maintenance. The overhanging cabin rail has virtually zero negative effect on visibility from the helm.

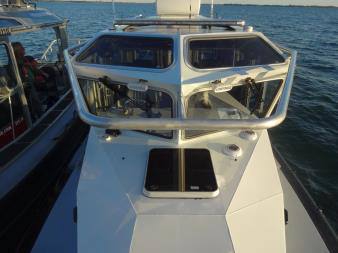

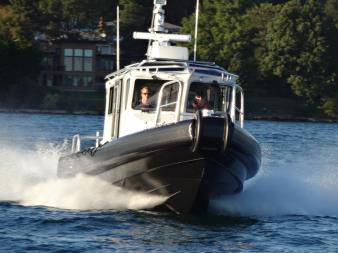

The overhead side spotter windows are designed to be at the driver’s eye level when the boat is in a hard over banked turn. The full window side doors give complete visibility to any boat you are coming alongside without opening the doors. There are various options to ballistic protection, most agencies choose portable panels so are only carried for specific missions.

The Mobile AL Police chose the Offshore Cabin design because rough water is what they get 20 miles out in the Gulf.

Key Features

Extreme fine bow entry: The boat has an extremely fine bow entry that easily parts a wave or steep chop to protect the crew and reduce icing & spray. This translates into minimal vertical accelerations in steep chop or seas and reduces crew fatigue.
Variable Deadrise Hull: The Interceptor design is the only current design in production today with a variable deadrise hull which develops into a 22 degree monohedron aft deadrise. This feature allows the heavily laden 9M Special Forces Craft, with twin 400 HP Merc outboards to be able to trim up 16 degrees in a split second when faced by a large breaking wave in the dark. The USCG Long Range Interceptor designed with diesel waterjets with no trim control, can trim up with 9-10 degree bow trim.
Soft Dry Ride: This unique design provides an exceptionally SOFT DRY RIDE, this translates into a more comfortable less fatigued dry crew, not fighting off wet & cold. Crew fatigued by wet and cold and a hard ride are not operating in a safe zone of operation. The soft dry ride experienced by crews keeps body temps up and alertness and reaction times at the highest level.
Stability: Calculated and tested to ISO 12217 Cat B (8-17 foot waves) with initial stability that does NOT require the collar to be in the water with minimum crew on one side of the boat. This significantly increases collar life by many years. Most RIBs require the collar to be submersed to meet intact stability. Collars of this design suffer extreme degradation from salt water immersion and tearing from hull spray deflection at extreme speeds. Flotation collars are not cheap to replace.
Raised Collar Design: The raised collar design permits much greater banking and tighter turning radii at all speeds, as well as knocking down seas. The raised collar still lends itself for additional passenger seating and superlative fendering and shouldering maneuvers.
Gunwale Design: The hull/gunwale design allows the boat to be operable even if the collar were severely damaged or completely ripped off the boat. We have specifically designed the craft to be operable in this extreme condition.
Spray Reduction: So important from a driver comfort position, visibility, body temperature control, icing instability. The raised collar design of the Interceptor Patrol dramatically reduces spray and collar damage from water pressure in aft quarters at speed. The spray reduction is further dampened by the performance strakes as they move spray away from the boat and its crew.
Less Drag: The raised collar does not induce an additional drag coefficient from water attachment aft, found in low fitting collar designs that suffer from added hull resistance.
Low Pressure Zone: The aft hull buttocks are designed to provide low pressure zones to prevent forcing the bow down when entering a hard over turn and prevent any chance of hook.
Elongated Spoon Bow: The bow has an elongated spoon bow shape that combined with higher bow trim allows the boat to shoulder a ship at up to 26 knots in 3 foot seas as tested. This is a world record for shouldering a ship and should be done only by well trained personnel. The elongated bow shape also reduces acceleration loads as the bow enters the wave.
Performance Wing Strakes: Performance wings mounted Port & Stbd create faster acceleration and faster time to plane and higher speeds by added boat lift and significantly tighten turning radius. The performance wings are mounted below the chine so as not to conflict with trailer loading and cannot trip the vessel as some performance wings can.
Low dB Signature: The vessel has 5/16” bottom plating for quieter hull noise and low Db for crew, buffered by the extreme fine bow entry. The quieter hull allows for less detection as you come up behind a target.This also permits operation in higher ice thicknesses.
MIL Standards: The Interceptor is designed to US Navy & US Coast Guard MIL standards, including ISO 12217 stability Category B, (8-17’ wave heights) and ISO 12215 structural standards. ISO 12215 design requires structure designed to withstand the Cat B wave height impacts at the maximum operational speed.
Higher Sea States: The unique hull design allows smaller craft to operate safely in higher sea states. The USCG chose the Interceptor design for the offshore 35’ Cutter Boat Long Range Interceptor II and the offshore 23’ Cutter Boat Large.
Level Deck: The cabin version has a single level cockpit/cabin deck. This prevents any trip hazard while entering or leaving the cabin. This is a very important feature when in a high sea state or an emergency situation when moving about with gear is critical and time sensitive.
Headroom: Lots of headroom, the cabin is designed for larger operators, it has an above normal (ABS) aisleway width and 6’10” headroom in the cabin and 5’11” headroom in the cuddy. There is an optional walkthrough cuddy door way to the foredeck, with either the inshore well deck version or the offshore closed in foredeck.
Bow Gate: There is an optional drop down foredeck gate with steps and ladder for accessing beach landings or for diving or retrieval off the bow. The bow ladder is set at a comfortable angle for divers exiting the water.
Dive Doors: Dive doors are located on both port and starboard sides of the cockpit. Dive doors lift out easily and have a lanyard locking pin system to hold them in place, pull the lanyard as you lift the door out. The door stores on the opposite door or on the lazarette. The door cutout is level with the deck giving the divers or rescue person the lowest point to water. The sockets for the 400 lb dive ladder is just below the deck with the underwater dive light below that to illuminate the ladder position in tepid waters.
Rapid Hinging Mast: The newly designed Rapid Hinging Mast (Patent Pending) can be lowered by one man without tools in 9 seconds and raised in 10 seconds. This is a breakthrough in hinged masts and designed to sea state 5-18’ wave strength.
Multiple Cabin Designs: The Interceptor Patrol has multiple cabin designs to choose from, Walk Around Cabin, has full width cabin, ample width side decks with open forward well deck, Offshore Cabin, has decked in foredeck with wave break cuddy design, but still has a walk out cuddy door. Fast Attack Cabin, has an open or closed cabin and is adjustable with bolt on cabin sides and rear wall for winter conditions or summer for HVAC. Open roll up sides for good weather permit officers much easier access to other boats right from their seat.
Excellent Visibility: The Interceptor Patrol provides the best visibility you can get, beyond expectations, and exceeds all ABYC guidelines. The overhead spotter windows offer full 90 degree vertical visibility even with an overhead electronics locker. Side spotters are designed to provide a full range of visibility at the helmsman’s eye level when in a hard over maneuver, banked at 45 degrees. Full glass side sliding doors provide unparalleled visibility when coming alongside a boat or dock or searching the water up close.
Side Sliding Doors That Work: The ergonomic design that went into the Interceptor Patrol made sure that sliding side doors allow the operator an easy time getting out and back into the boat. They are made for real ingress/egress not just large vent windows. Nothing better than cruising with your foot resting outside the door.
