Kingston 26/28 RIB

Kingston 26/28 RIB
Potomac Marine Tow Boat
LOA 29’6"
Beam 10’10"
Moulded Beam 9’6"
Vessel Draft 18"
Weight 8,600 lbs. (Diesel)
Speed @ 380hp 32 knots
Fuel Capacity 120 gallons

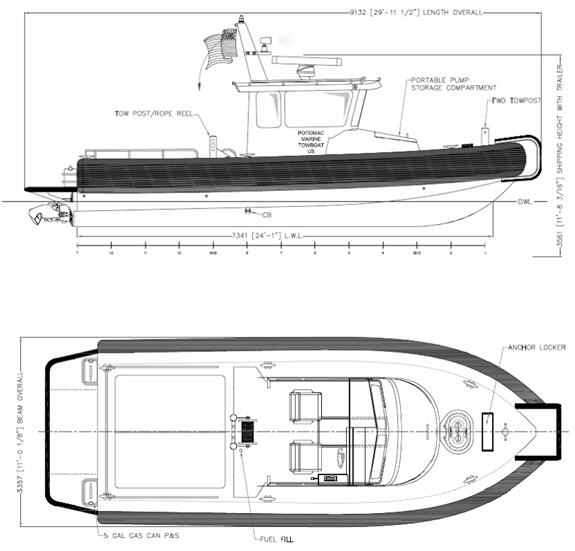

MetalCraft Marine Kingston 2628 RIB drawing

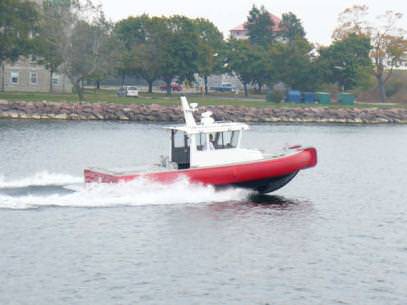

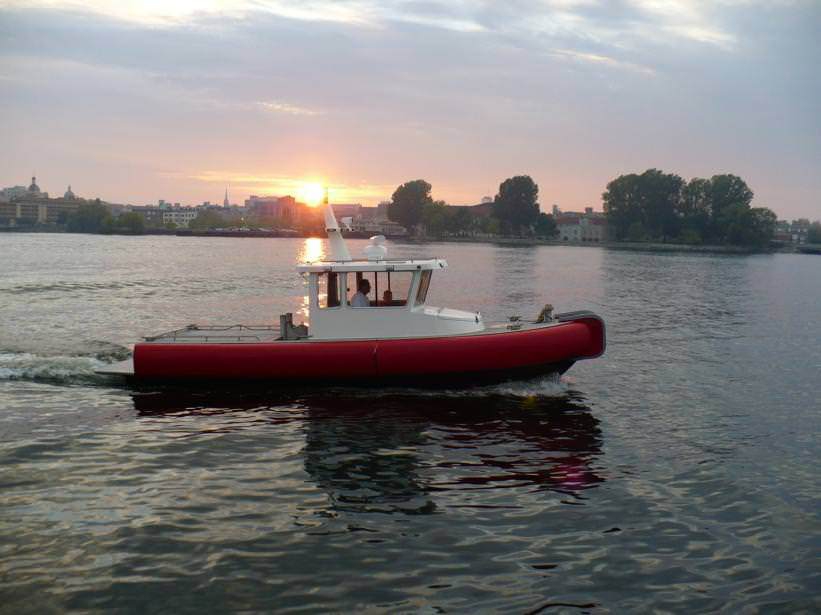

MetalCraft Marine Kingston 26/28 RIB Patrol Boat MetalCraft Marine Kingston 26/28 RIB Patrol Boat MetalCraft Marine Kingston 26/28 RIB Patrol Boat

Hull Shape

The Kingston hull form is a proprietary design featuring a delta-pad center-planing-flat which provides the additional lift required for a low trim-angle through the pre-planing transition zone, “the hump”.

Standard Features

  • MCM 10 year hull warranty
  • MCM hi-impact foam buoyancy collar w/ urethane coating
  • Heavy-duty framing
  • Self-bailing decks
  • 1/4" bottom plate
  • 3/16" side plate
  • Welded handrails on cabin roof
  • 6 oversized towing\mooring cleats
  • Standing headroom 3-sided wheelhouse
  • Engine room hatches with gas struts
  • 120 gallon fuel tank
  • 2000 GPH bilge pumps
  • Dive platform
  • Push knee box w/ non-marking ‘D’ rubber
  • Hydraulic steering
  • MCM trunk style sealed cabin locker
  • Single diesel/water jet or outboard power
  • Cabin heater with defrost
  • Pre rigged packaged controls and gauges
  • Tow rail around engine hatches on aft deck
  • Hinged euro mast

Options

    • Optional tow post w\reel
    • Electronics: Radar, VHF, GPS, Depth sounder, etc
    • Cabin insulation
    • Dive ladder
    • Aft canvas wall or enclosed cabin w/ door
    • Additional seating and storage lockers
    • Scuba tank rack
    • Lighting packages
    • 110 volt shore power options
    • Interior lighting options
    • Paint to customers spec
    • Winch & davit
    • Net hauling gear
    • Larger fuel tankage
