Kingston 36 High-Speed Aluminum Patrol Boats

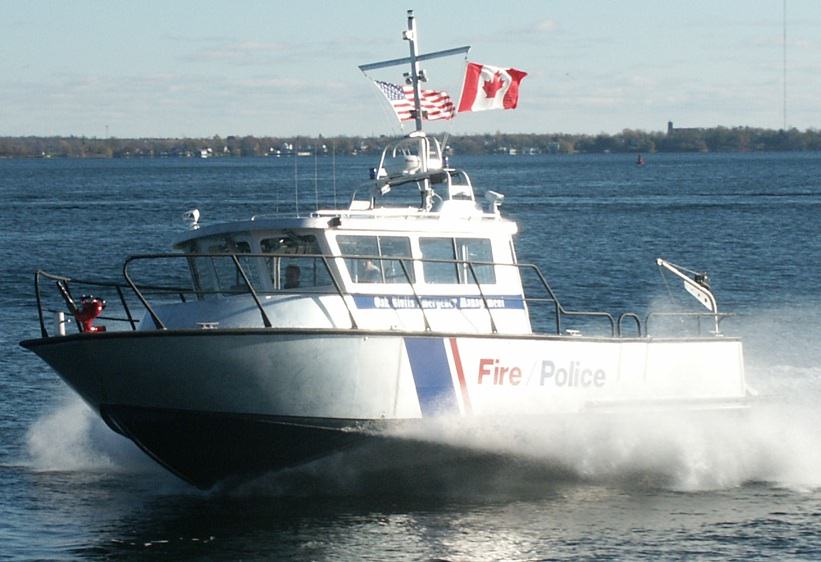

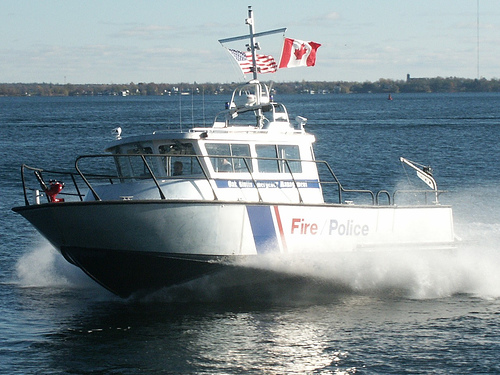

Kingston 36 Patrol Boat

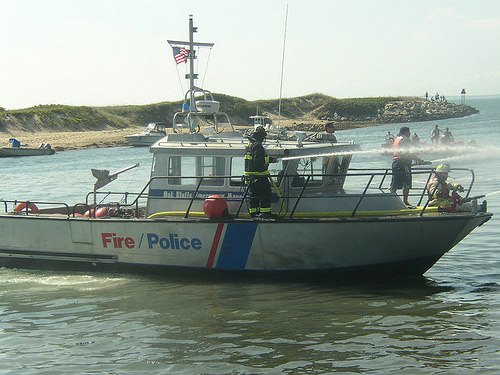

Kingston 36 built for Oak Bluffs on Martha's Vineyard
LOA 39’6"
Beam 13’
Vessel Draft 24"
Weight 18,000 lbs.
Max Speed (light) 40 knots
Cruise Speed 35 knots
Fuel Capacity 300 gallons

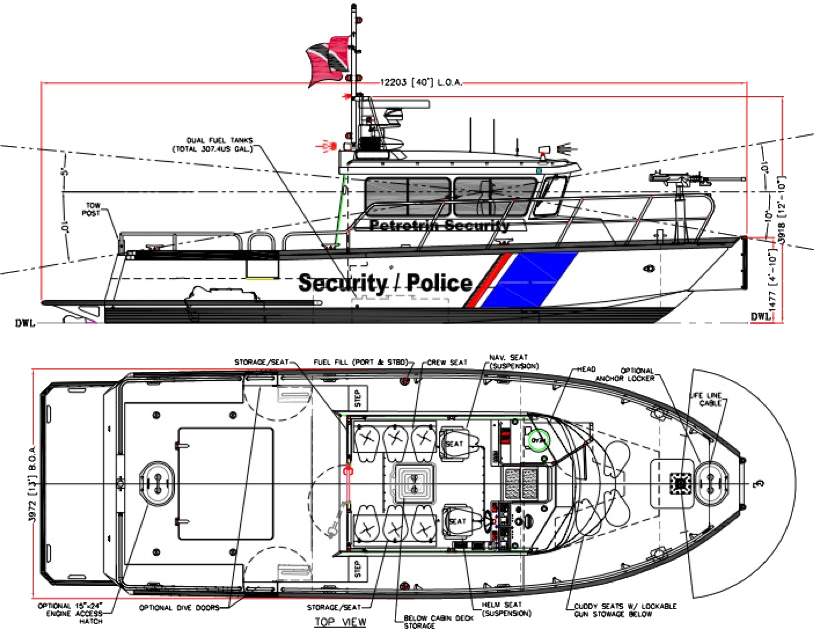

MetalCraft Marine Kingston 36 drawing

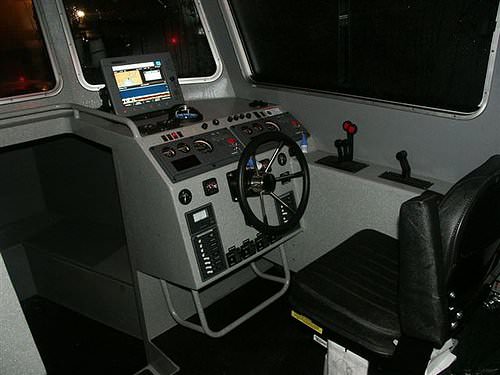

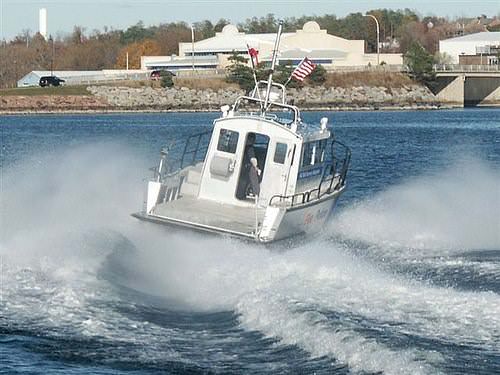

MetalCraft Marine Kingston 36 Patrol Boat MetalCraft Marine Kingston 36 going sideways MetalCraft Marine Kingston 36 helm station

Hull Shape

The Kingston hull form is a proprietary design featuring a delta-pad center-planing-flat which provides the additional lift required for a low trim-angle through the pre-planing transition zone, “the hump”.

Standard Features

  • MCM 10-year hull warranty
  • Proven PowerLift hull
  • 1/4” marine grade aluminum hull plate
  • Welded aluminum handrails forward
  • Watertight below-deck bulkheads
  • Full instrumentation and controls
  • Hydraulic steering
  • Dual deluxe helm seats
  • Forward cabin with seats/berths
  • Aluminum windows
  • Opening hatch in cuddy
  • Weathertight aft cabin door
  • 12volt/110 volt electrical panels
  • 300 gallon fuel tank
  • Navigation lights
  • Custom bow/stern railing
  • Aft flushdesk cargio bay

Options

  • Engine Options: single/twin diesel or gas
  • Drive options: jets, outdrives, shafts, outb.
  • Crewboat / Survey configuration
  • Full width swim platform
  • Drop down tailgate
  • Dive doors with integral ladders
  • Removable aft deck railings
  • Heating, air conditioning options
  • Electronics installation: radar, VHF,
  • GPS, sounder, hailer, etc.
  • Duel helm stations
  • Removable flybridge for shipping
  • Seating options
  • Painting to customer spec
  • Fuel tankage to 800 gallons
  • Docking lights, spotlights
  • Mast/radar arch arrangements
  • Marine head w/holding tank/shower
  • Push knees
  • Combatant arrangements
