Research Boats
Our research vessels can be powered with outdrive(s), outboard(s), inboard(s), or inboard jet(s).
We build vessels from 22’ to 54’. Each one has a 10-year hull warranty, excellent reliability and very good handling. The boat tracks well, requires just moderate speed out-of-the-hole, has great wave-handling, and a tight turning-radius.
The Kingston Series hull shape is a monohedron with a Delta Pad lifting plane designed for convertability to either jet or propellor propulsion.
Its center tapered bottom planing flat is mandatory for clean water flow to center mounted jet intakes for prevention of cavitation. It increases flow to a twin installation and has proven unmatched for a triple jet or I/O installation.

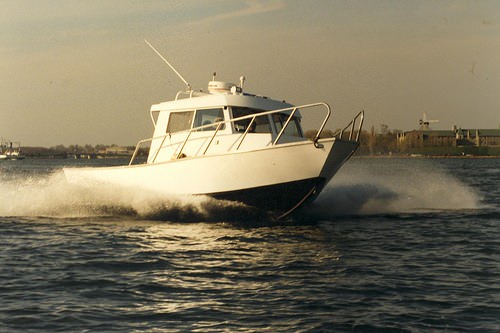

| Bullnose 24 SV North Cascades National Park  | |
|---|---|
| Max speed | 40 knots |
| L.O.A. | 24' |
| B.O.A. | 8'4" |
| Draft | 12" |
| Weight | 2,300 lb (light base boat) |
| Propulsion | 200 hp |

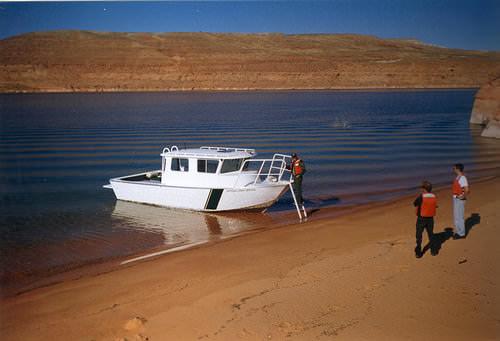

| Bullnose 26 SV US National Park Service, Glen Canyon, Utah. Bullnose 26 SV | |
|---|---|
| Max speed | 40 knots |
| L.O.A. | 26' |
| B.O.A. | 10' |
| Draft | 14" |
| Weight | 2,500 lb (light base boat) |
| Propulsion | 250 hp |
| Bullnose 28 SV Standard Configuration | |
|---|---|
| Max speed | 40 knots |
| L.O.A. | 28' |
| B.O.A. | 10' |
| Draft | 24" |
| Weight | 4,000 lb (light base boat) |
| Propulsion | 300 hp |
| Bullnose 30 SV Standard Configuration | |
|---|---|
| Max speed | 40 knots |
| L.O.A. | 30' |
| B.O.A. | 11'6" |
| Draft | 24" |
| Weight | 4,500 lb (light base boat) |
| Propulsion | 400 hp |

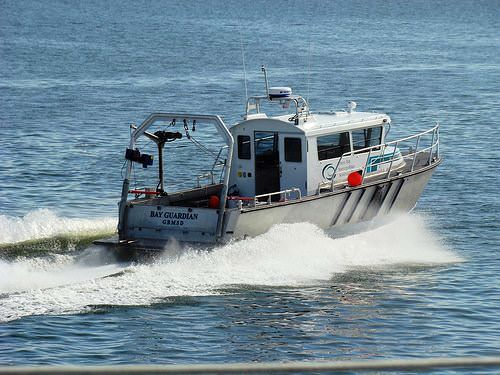

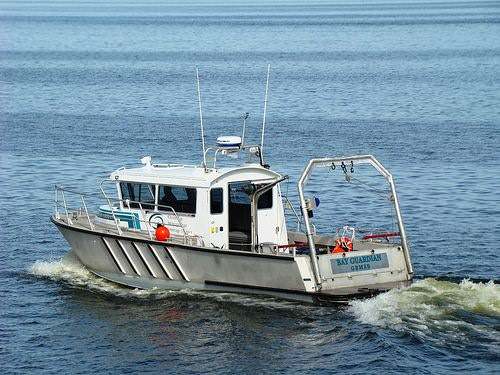

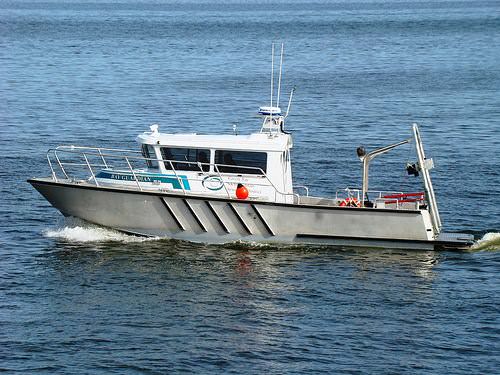

| Kingston 36 Research Green Bay Metropolitan Sewerage District | |
|---|---|
| Max speed | 37 Knots |
| Cruise Speed | 30 Knots (light) |
| L.O.A. | 40'11" |
| B.O.A. | 13'0" |
| Draft | 20" |
| Weight | 22,500 lb |
| Engines | Twin Cummins 6B5.9L, 425 hp |
| Jets | Twin Hamilton HJ292 |
| Bullnose 36 SV Bighorn National Park | |
|---|---|
| Max speed | 40 knots |
| L.O.A. | 36' |
| B.O.A. | 11'11" |
| Draft | 32" |
| Weight | 6,500 lb (light base boat) |
| Propulsion | 500 hp |
