MetalCraft Marine Aluminum Barges
MetalCraft Marine has a number of unique barge designs that can meet some of the toughest challenges for high load efficient work platforms. MCM has the engineering backup to maximize a payload and match a propulsion system that will provide high speed or optimum fuel economy
MetalCraft offers four different barge hull designs,
A flat-bottom Sea Truck, where hull efficiencies are designed around max payloads and lifting options. Designs available from 24’ to 36’.

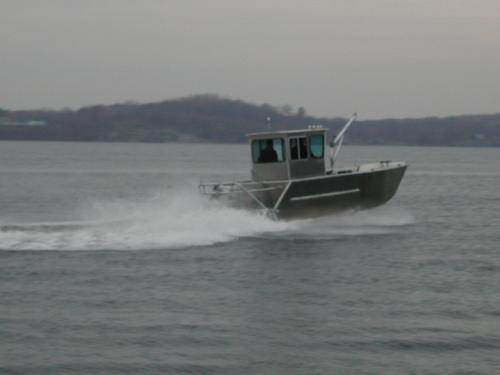

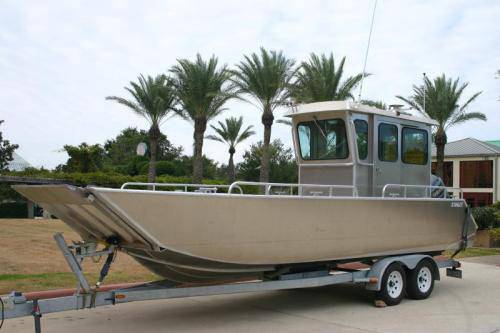

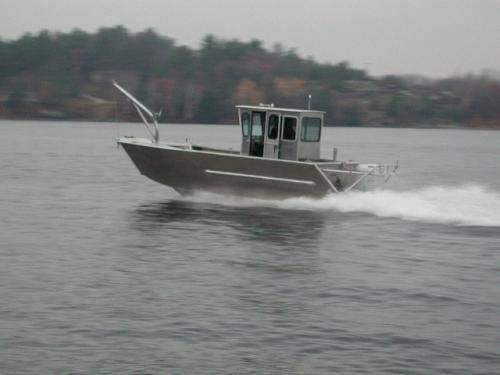

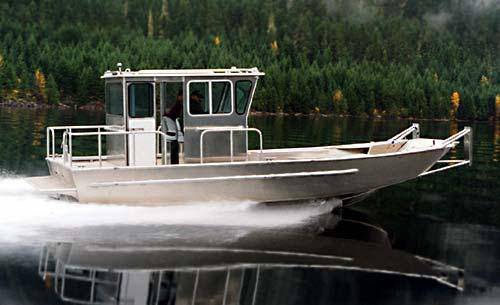

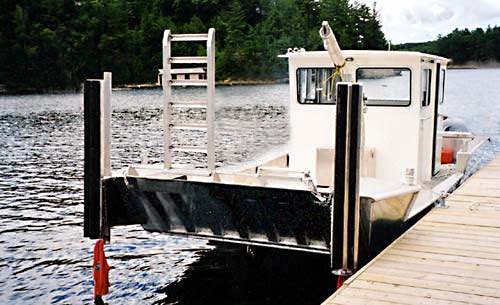

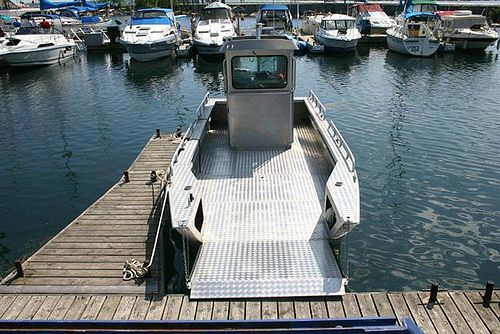

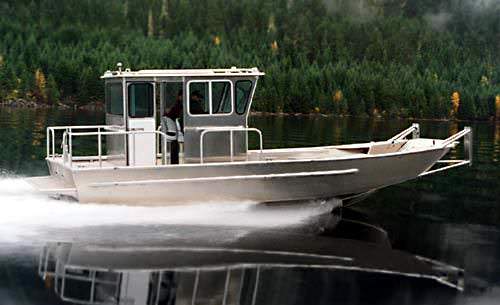

The Bullnose, a deep ‘V’ high speed, high wave, pick up truck on the water that drives like a boat not a barge. Designs available from 20’ to 34’.

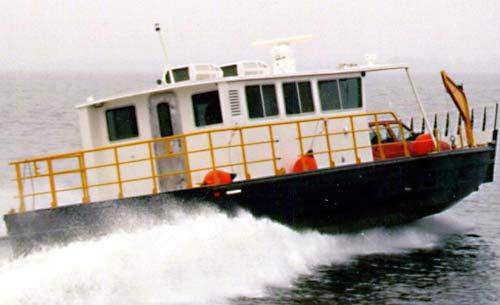

The St. Lawrence Barge is a shallow ‘V’ high speed, high load barge designed for planing speeds in full load condition. It is easily driven on plane with very low horsepower ratings. Designs available from 30’ to 65’.

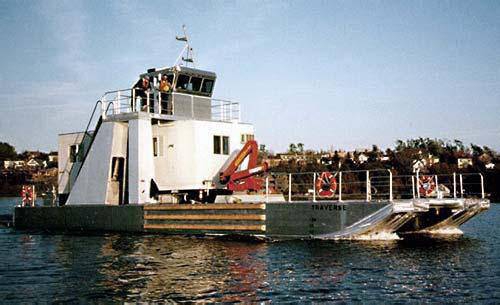

The Polar Barge is a catamaran barge in fixed or collapsible configurations. It is designed for planing or displacement operation and can provide a variety of speed and high load solutions with a wide range of power selections. Designs available from 24’ to 65’.

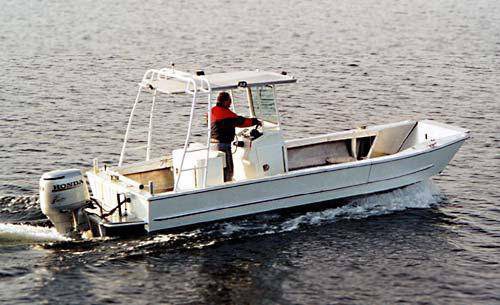

| Bullnose 24 SV North Cascades National Park  | |
|---|---|
| Max speed | 40 knots |
| L.O.A. | 24' |
| B.O.A. | 8'4" |
| Draft | 12" |
| Weight | 2,300 lb (light base boat) |
| Propulsion | 200 hp |

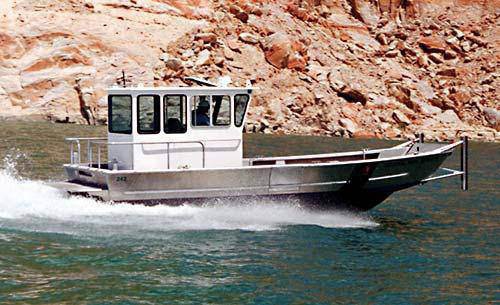

| Bullnose 26 SV US National Park Service, Glen Canyon, Utah. Bullnose 26 SV | |
|---|---|
| Max speed | 40 knots |
| L.O.A. | 26' |
| B.O.A. | 10' |
| Draft | 14" |
| Weight | 2,500 lb (light base boat) |
| Propulsion | 250 hp |
| Bullnose 28 SV Standard Configuration | |
|---|---|
| Max speed | 40 knots |
| L.O.A. | 28' |
| B.O.A. | 10' |
| Draft | 24" |
| Weight | 4,000 lb (light base boat) |
| Propulsion | 300 hp |
| Bullnose 30 SV Standard Configuration | |
|---|---|
| Max speed | 40 knots |
| L.O.A. | 30' |
| B.O.A. | 11'6" |
| Draft | 24" |
| Weight | 4,500 lb (light base boat) |
| Propulsion | 400 hp |
| Bullnose 36 SV Bighorn National Park | |
|---|---|
| Max speed | 40 knots |
| L.O.A. | 36' |
| B.O.A. | 11'11" |
| Draft | 32" |
| Weight | 6,500 lb (light base boat) |
| Propulsion | 500 hp |

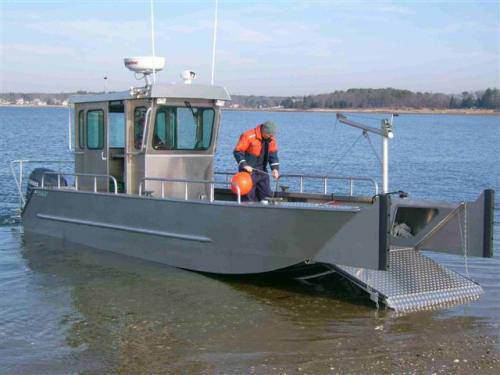

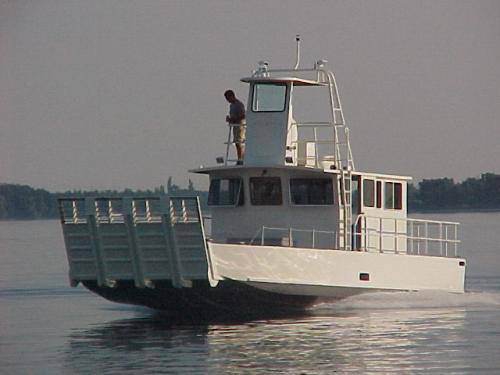

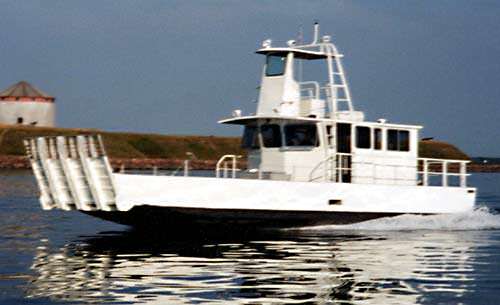

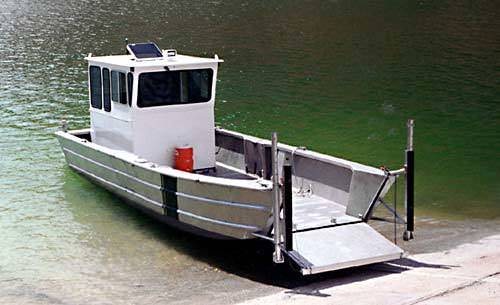

| Utility Landing Crafts Standard Configuration | |
|---|---|
| L.O.A. | 30' - 60' |
| L.W.L. | 10' - 20' |
| Capacity | 9,000 - 35,000 lb |
| Propulsion | Outdrive, Inboard, Waterjet, Outboard |

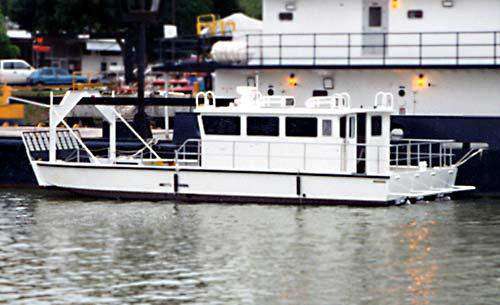

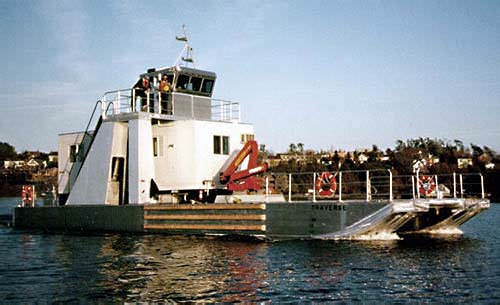

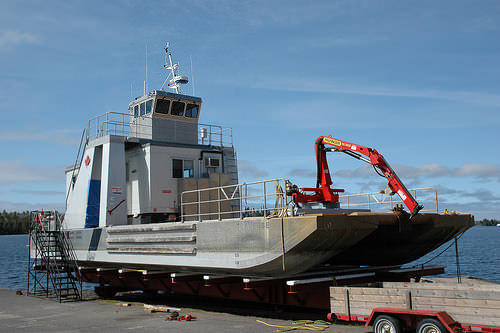

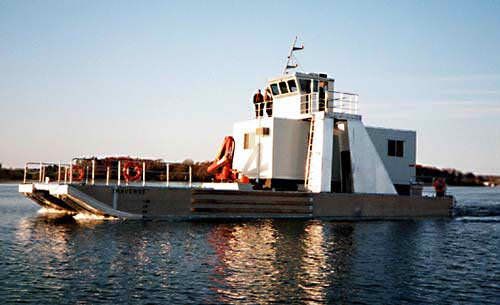

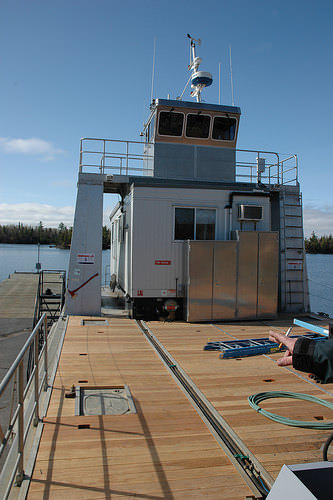

The Polar Line of innovative catamaran barges is the cost-effective answer to your marine transportation needs.
| Polar Barge Standard Configuration | |
|---|---|
| Max speed | 10.6 knots |
| Cruise Speed | 10 knots |
| L.O.A. | 65' |
| L.W.L. | 62' |
| B.O.A. | 24' |
| Draft | 2' |
| Weight | 38.2 MT |
| Fuel Cap. | 400 gal |
| Engines | Twin Volvo TAMD4111 |
| Generator | Northern Lights 30kW |
