FireStorm 40 High Speed Aluminum Fireboat
| Standard Configuration | |
|---|---|
| Max speed | 37 kt fully loaded |
| L.O.A. | 43'1" |
| B.O.A. | 14'4" |
| Draft | 25" |
| Discharges | 2 monitors; 2 discharges; 1 LDH |
| Propulsion | Water-jet |
| More photos on Flickr | |
The Firestorm 40 High-Speed Aluminum Fireboat represents a new generation in fireboat technology.
It is a culmination of years of study and research into high volume pumping systems and their effects on a small boat's stability, controllability, dynamic loading and righting moments.

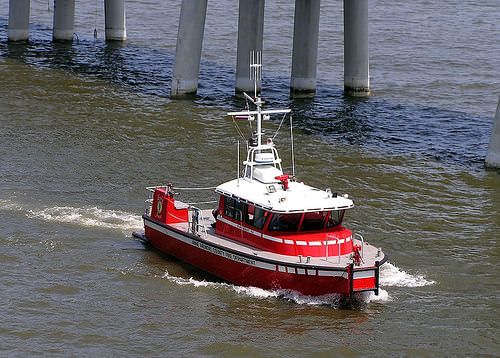

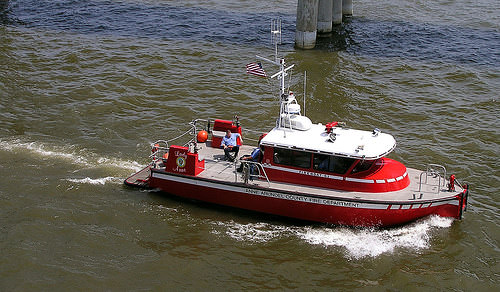

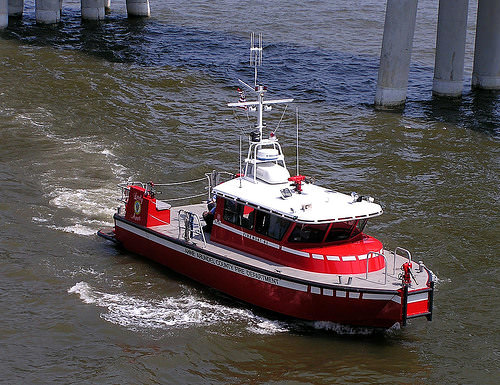

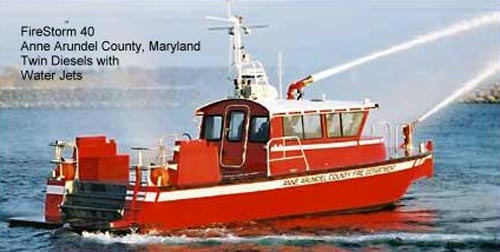

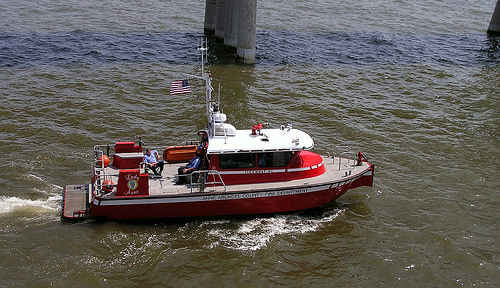

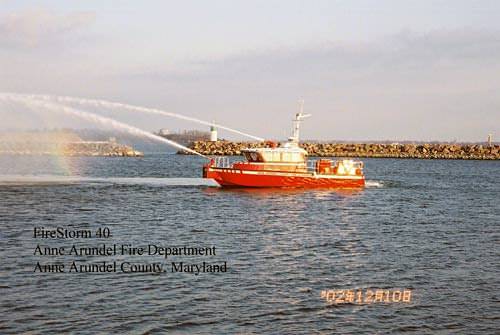

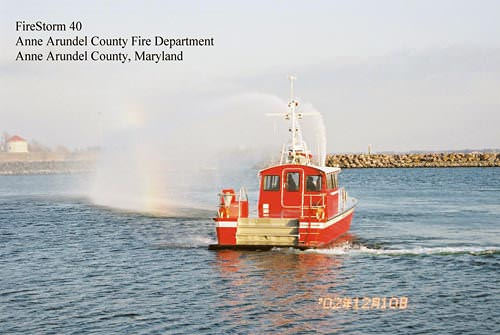

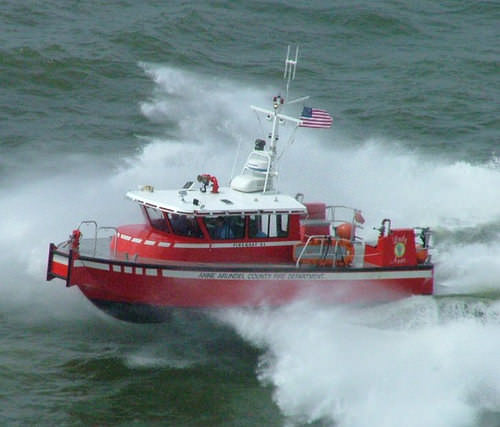

Anne Arundel County FD
| FireStorm 40 Anne Arundel County FD  | |
|---|---|
| Max speed | 42 MPH |
| L.O.A. | 43'1" |
| B.O.A. | 14' 4" |
| NFPA | Class B* |
| Pumps | two 1000 GPM Darley |
| Flow | 2850 GPM (2 monitors and 2 handlines) |
| Monitors | Akron 3679 Conquest Akron 3471 Gemini |
| Engines | Twin Cummins, 585 HP ea. |
| Jets | Hamilton 322 |

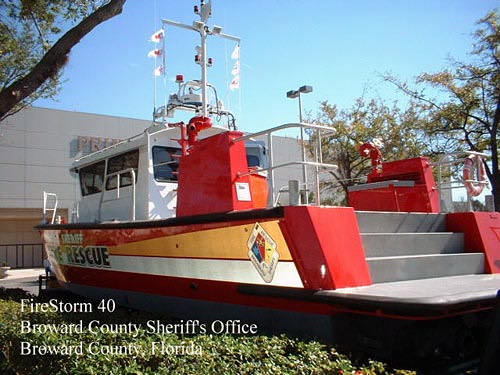

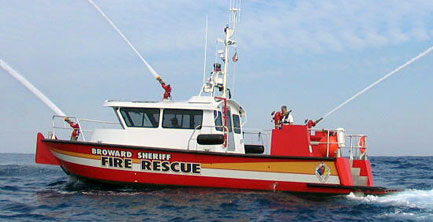

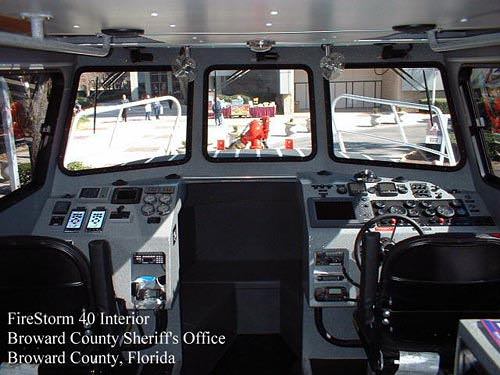

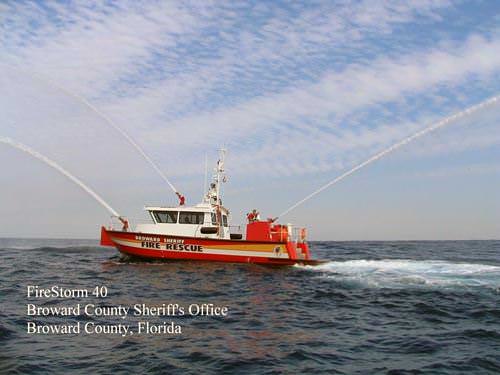

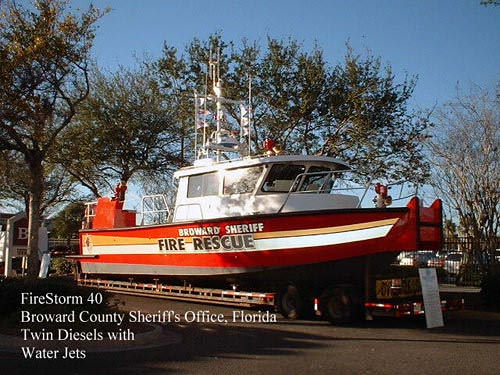

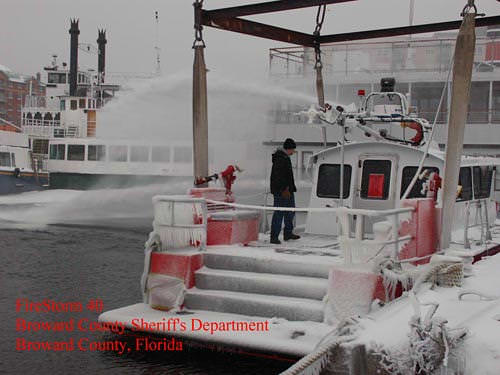

Broward County Sheriff's Office
| FireStorm 40 Broward County Sheriff's Office | |
|---|---|
| Max speed | 42 MPH |
| L.O.A. | 43'1" |
| B.O.A. | 14' 4" |
| Draft | 2'5" |
| NFPA | Class B* |
| Pumps | 2 Darley 1250 GPM |
| Flow | 3109 GPM (4 of 4 monitors) |
| Monitors | Elkhart |
| Engines | Twin Cummins Diesels QSM 11 |
| Jets | Hamilton 322 |

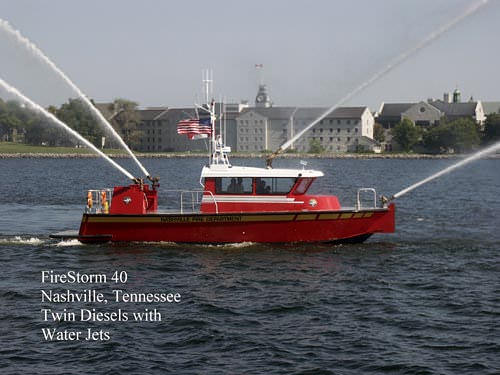

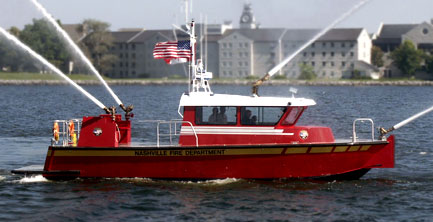

Nashville Fire Department
| FireStorm 40 Nashville Fire Department | |
|---|---|
| Max speed | 42 MPH |
| L.O.A. | 43'1" |
| B.O.A. | 14' 4" |
| Draft | 2'5" |
| NFPA | Class C* |
| Pumps | 2 Darley 1000 GPM |
| Flow | 2900 GPM |
| Monitors | Akron |
| Engines | Twin Cummins Diesels QSM 11 |
| Jets | Hamilton 322 |
CBRN Options
This fireboat can be equipped with Chemical, Biological, Radiological, and Nuclear (CBRN) options for advanced readiness. Click for more...
Fire Systems
The FireStorm 40 can be fitted with twin or single fire pumps for redundancy or added firepower. Flow meter results on the FireStorm 40 were 3100gpm from 2x 1000 GPM pumps and 2200 GPM from a single 1500 GPM pump. Flow meter results from the FireStorm 36 were 2420 gpm from a single 1750 gpm Darley PSM pump.
High pump numbers are due to a unique MetalCraft Marine proprietary designed sea chest.
This sea chest has an intake as large as a firefighter himself. It can be inspected and cleaned while underway and provides a positive head to the pump. It provides a filtered water source to the pump while self draining with the boat on plane.

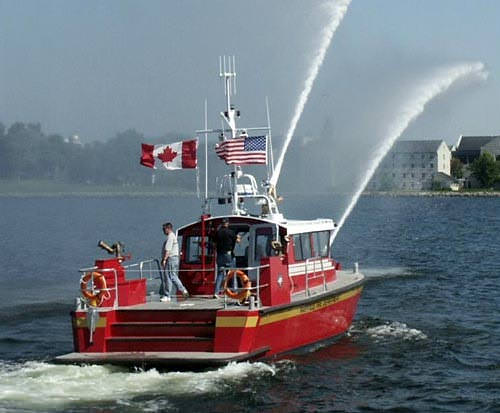

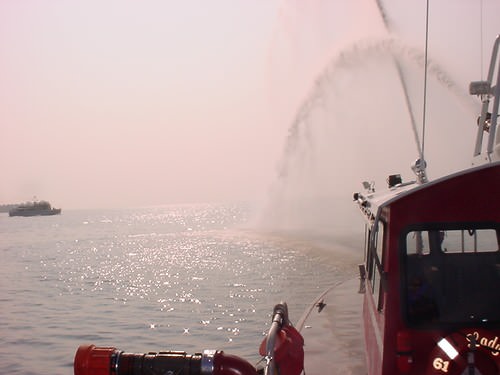

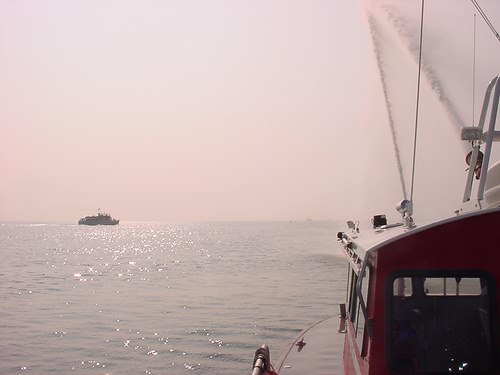

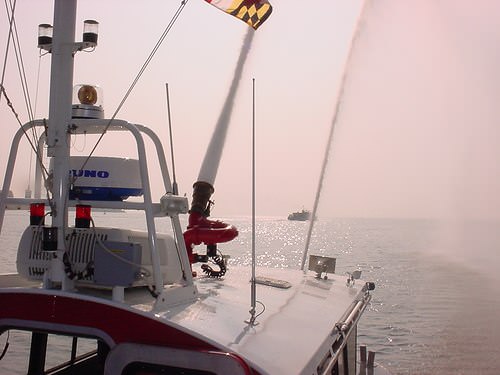

The monitor location is central for further range and is close to the center of buoyancy. This permits the helmsman to pivot the boat around a high thrust load at full stream while running a low engine rpm, not unlike a towboat.
Operators are amazed at the boat's control under full streaming at any angle. The boat's head never blows off its course.
Simplicity is the key to the FireStorm fire system. Its fire truck-based designs promote easy maintenance and reparability.
All FireStorm fireboats pack a huge punch for their size, and their shallow draft gets them into the smallest of marinas and very close to shore.
* Some exceptions to the NFPA 1925 apply, based on individual specifications.
Hull Shape
The Firestorm operates on the Kingston hull design platform. This proprietary design features a delta-pad center planing flat. This provides additional lift resulting a lower trim angle through the pre-planing transition zone, "the hump".
Fireboats are about 25% heavier than a conventional patrol boat because of firefighting equipment and rescue gear. This can cause the planning hull surface area to be marginal, or even too low in the water, to plane at all. A heavy boat with a small water plane causes exaggerated high bow planning angles, and heavier loads on engines reducing their longevity.
MetalCraft Marine's high-efficiency hulls offset the FireStorm's high gear-loads, providing additional speed and better fuel economy. MetalCraft Marine FireStorm fireboats give you speed and performance without compromising the equipment list.

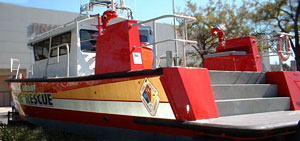

Rescue Systems
The FireStorm-36 and 40 are NFPA Class 'C' fireboats but can meet NFPA Class 'B' pumping requirements and pumps more than 25% in excess of its pump rating. Items like the wrap around recovery deck, track system safety harness (patent pending), internal foam tanks and forward push knees are only some of the design features specific to the FireStorm rescue system.
While arriving on-scene faster than most large vessels, FireStorms offers a wide range of specialized rescue features for first or only response.
These systems were designed with the input and insight from the O.W.L. Fire Department Boat Team of Fire Fighters. MetalCraft Marine would like to thank these men for their contributions and their affect on the future of fireboat design.
Rescue Options
- Heated & A/C patient care area with primary patient care bench & secondary care berth
- Hinged critical care berth
- Dedicated EMS equipment storage with power taps for battery chargers
- Piped oxygen supply to patient berths
- Forward loading capability for stokes through forward hinged window
- Aid bag, stokes and back board storage
- 500lb. manual or electric davit
- Aft deck steering station for crew and patient safety
- SCBA storage panel and dive tank storage racks, breathable air.
* Some exceptions to the NFPA 1925 apply, based on individual specifications.
